상세 정보 |
|||
| 소재: | 아연도강, 열차단과 단일 벽 | 냉각: | 에어컨과 선풍기들 |
|---|---|---|---|
| 특징: | 전원 분배 장치 포함 | 부분: | 스위치가 있는 LED 조명 |
| 진입 보호: | IP55 | 문: | 정문 1개 |
| 강조하다: | 19인치 야외 통신 캐비닛,배터리 선반 야외 통신 캐비닛,IP55 야외 통신 캐비닛 |
||
제품 설명

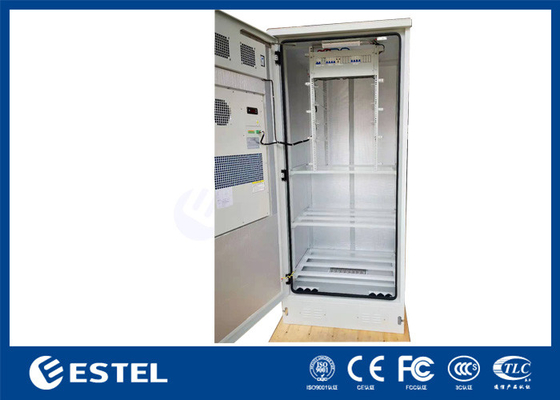

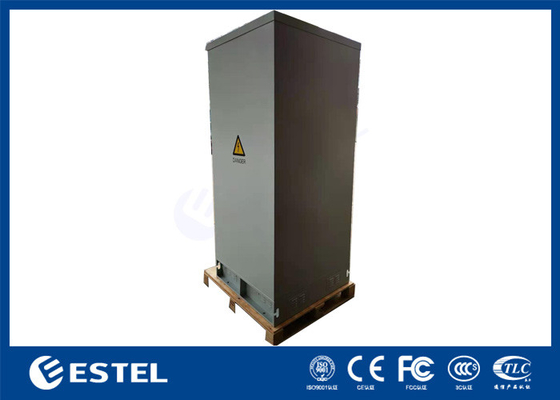

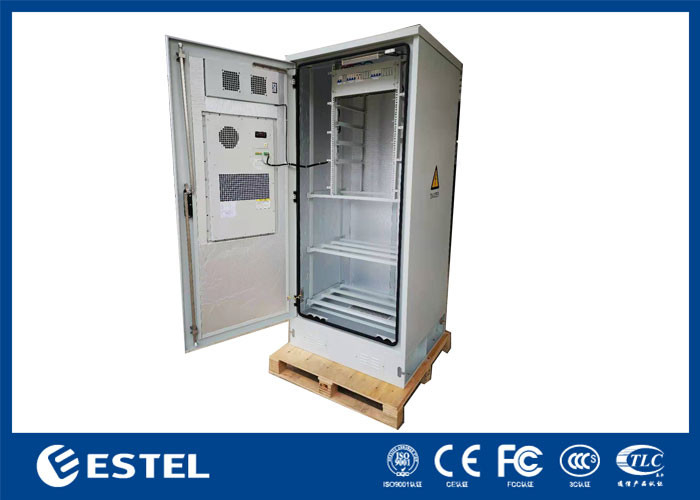

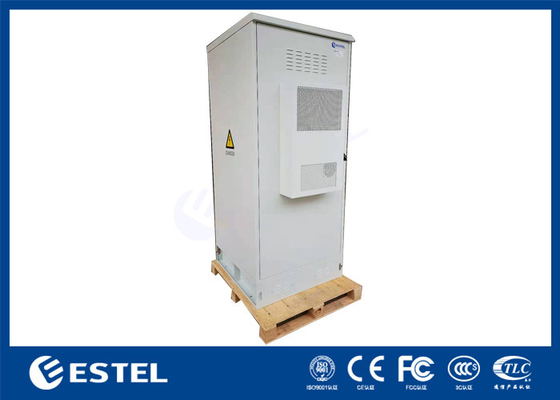

IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf Application:
- Satellite Communication
- Wireless Backhaul
- Cable Television
- Navigation & Positioning
- Military Installation
- Port Security
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf Features:
- Front access to the inside equipment
- IP level: IP55
- Standard 19“ rack for installation
- Outdoor anti corrosion powder coating
- The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment
- Cabinet cooling: 1500w air conditioner
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
- High integration, compact structure, easy installation and migration on later stage
- Anti-theft three point lock, excellent keyhole protection device
- All the screws&nuts are stainless steel material
- Support full design according to customer’s requirement
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
IP55 Outdoor Telecom Cabinet Specification:
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension:W×D×H 900×900×2100mm (2)One compartment: including 19” rack. (3)With one front door , with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 1500W Power Supply: 110VAC, 60Hz |
| 3 |
Power Distribution Unit |
1 | Set |
Grade B Lightning Proof AC Input: 63A/2P ×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4. Height: 4U |
| 4 | Fan | 2 | Set | DC48V |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | DC48V |
| 7 | Package | 1 | Set | Wooden Case |
PDU Principle Diagram
Cabinet Diagram:
